ReDot-PROPortable gold image measuring microscope integrates Android operating system, photosensitive chip,LED coaxial lighting, sensor, fine tuning motor, measurement software, battery, mobile platform and other functions in one, up to 1500 times magnification microscope. The device requires no external computer and power supply to measure and analyze anytime and anywhere.
instrumentMainly used in precision metal processing quality testing, non-woven fiber testing and other industries. 可以实现X Y Z dimensional measurement. Built-in Android operating system, WIFI wireless image data transmission module, equipped with intuitive and simple measurement operation APP software. Operate by mouse and remote control. Equipped with USB, WIFI output interface, can be taken images and measurement results stored to the computer, mobile phone, tablet, support remote transmission and data printing.
Main features of instrument:
l Handheld integrated design, small size of equipment, easy to carry. l Android system, no need to connect to an external computer and power supply can be measured and analyzed. l 7 inch HD touch screen, measurement operations are all done with a simple touch. l High resolution optical lens, highest800 times effective optical magnification. | l Length, Angle, area and other measurement functions accurate to the micron level. l One-click storage, storage picture playback function, can save pictures and measurement data pictures at the same time. l Built-in storage battery, can work continuouslyMore than three hours. l Fine electric focus adjustment. |
Typical user:
Product quality standard:
In line with the Chinese Academy of Metrology Institute measuring equipment standards.
Hardware features:

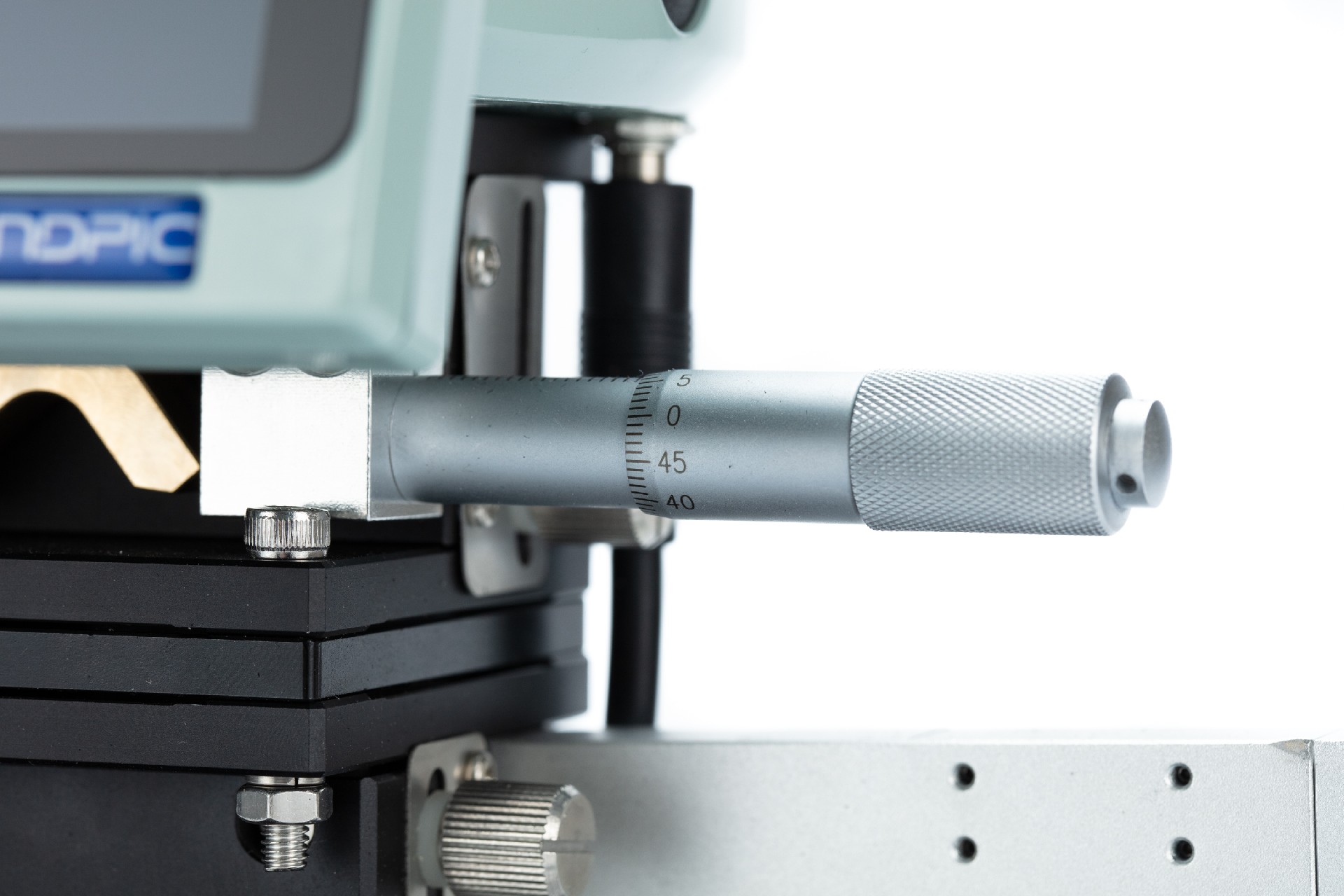

Integrated design, precision electric fine-tuning coke |
Android smart operating system |
|

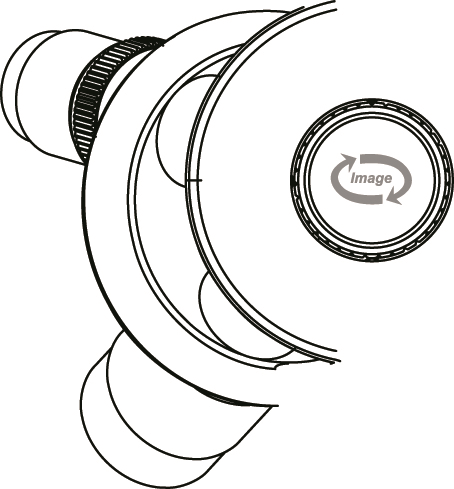

Take the image direction rotation structure |
Support wireless data transmission andUSB data output |
built-in8G Storage space for easy data storage |

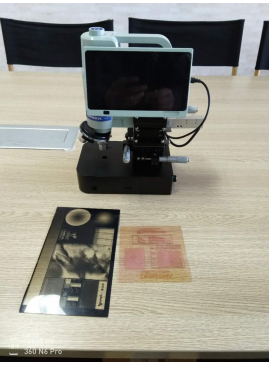

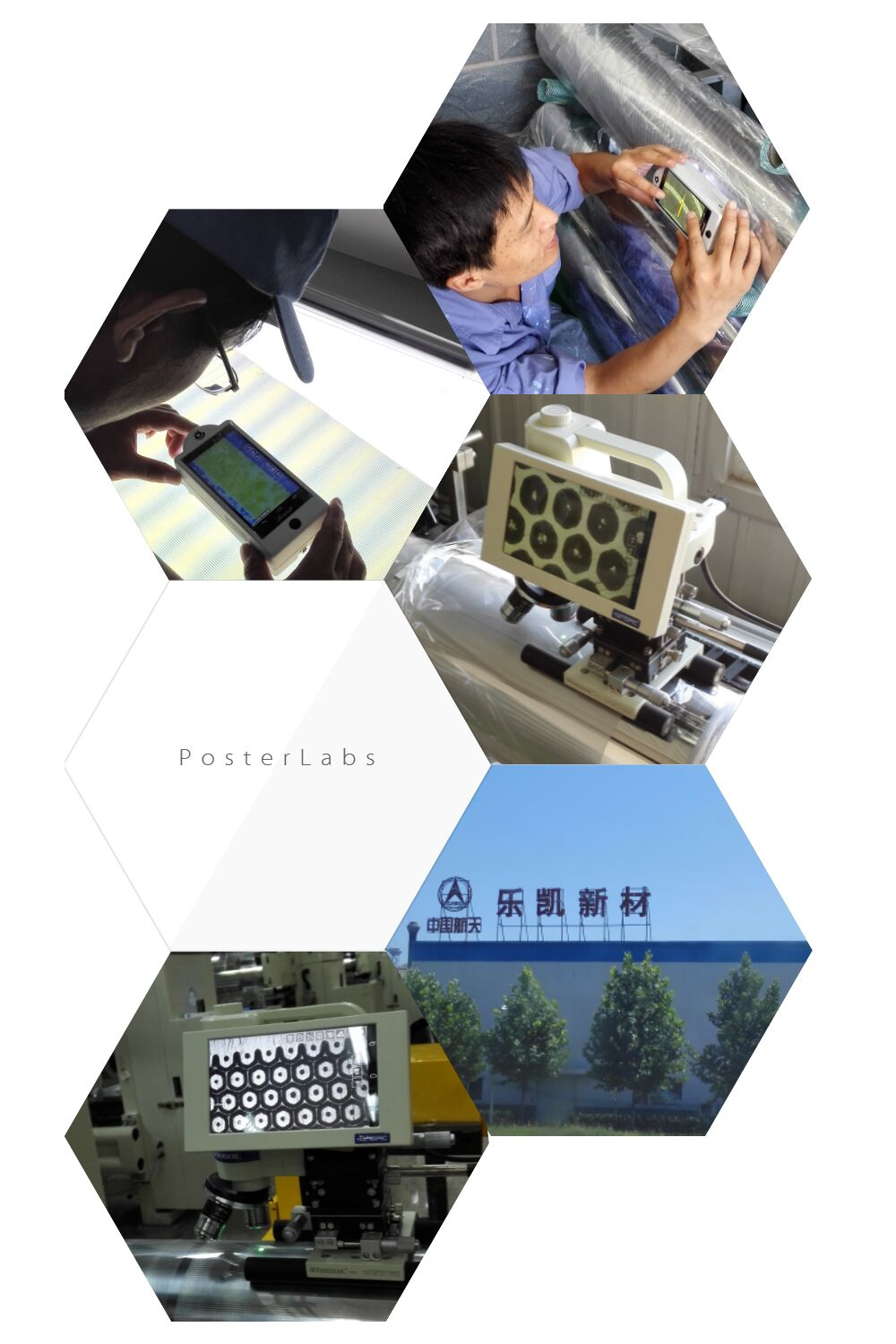

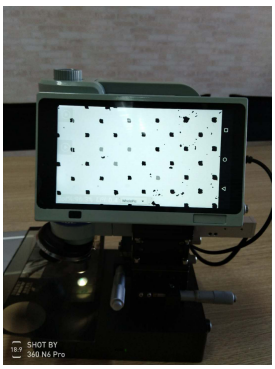

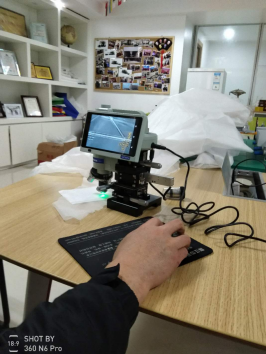

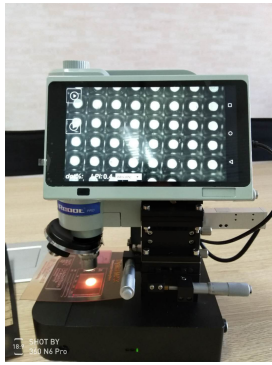

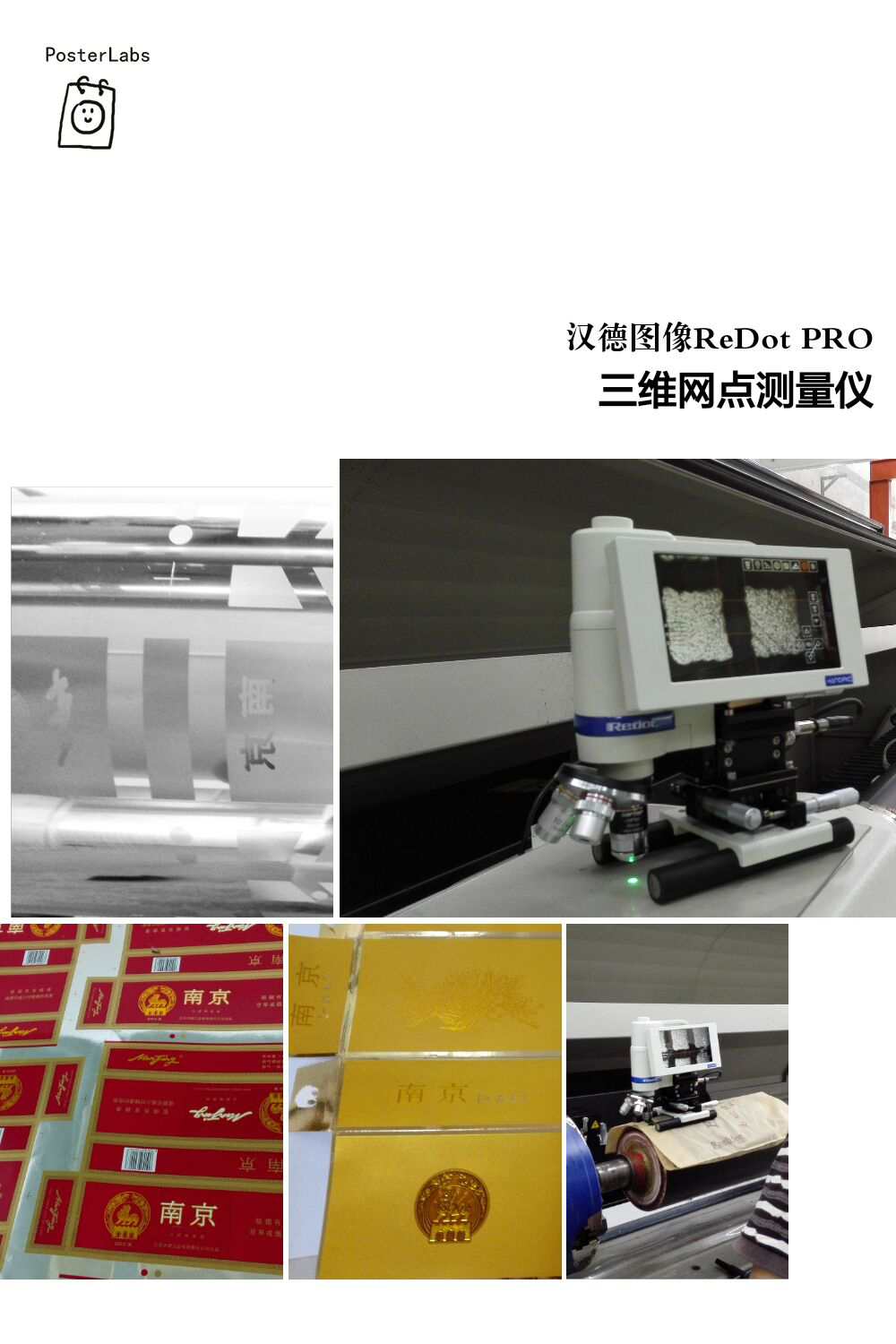

Instrument site picture:
Built-in measurementAPP software introduction:
一、 Rich measurement functions:
furnish6 commonly used measuring tools can accurately measure the length, Angle, area and other data of the network hole.
| Straight line measurement function icon |
| Angle measurement function icon |
| Area measurement function icon |
| Parallel line measurement function icon |
| Point to line verticalMeasurement function icon |
| Three-point circle measurement function icon |

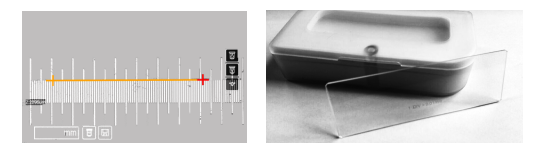

Second, support self-calibration function
Second, support self-calibration functionThe APP software supports the user's self-calibration function, when the measurement data deviation can be calibrated by itself, no need to repair.

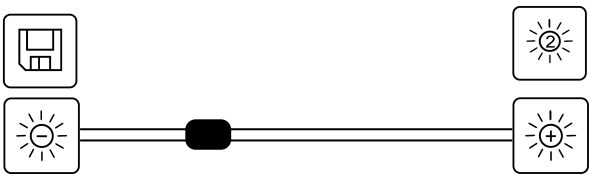

Three, according to different roller pre-set different shooting brightness
Different plate roller surface color difference is a lot, the absorption of light is also different, such as gravure plate roller surface plating, ceramic mesh roller surface spraying black ceramic, in order to achieve a good observation effect, the software supports users to pre-value several different exposure data.
Four, one-button shooting andWORD measurement data generation
自动生成PDFInspection report form, convenient data archiving.

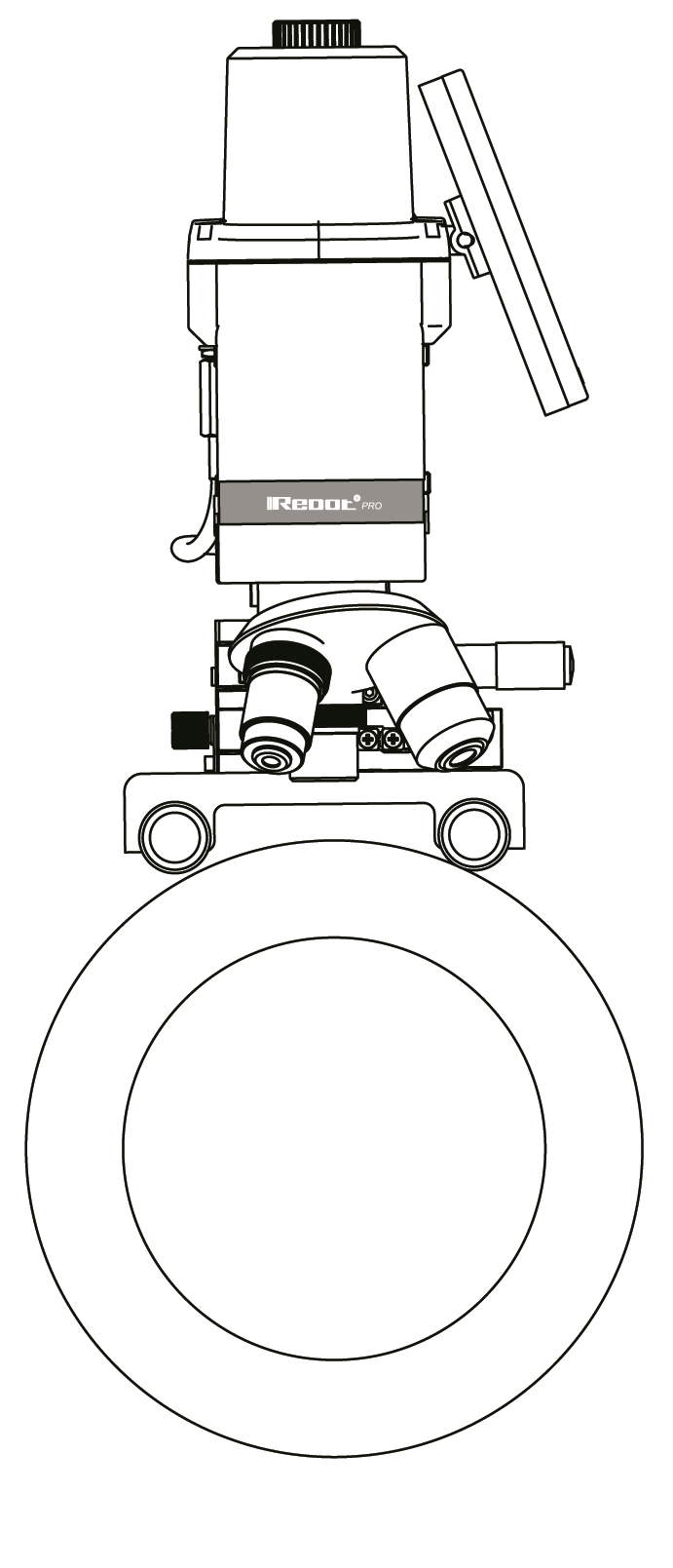

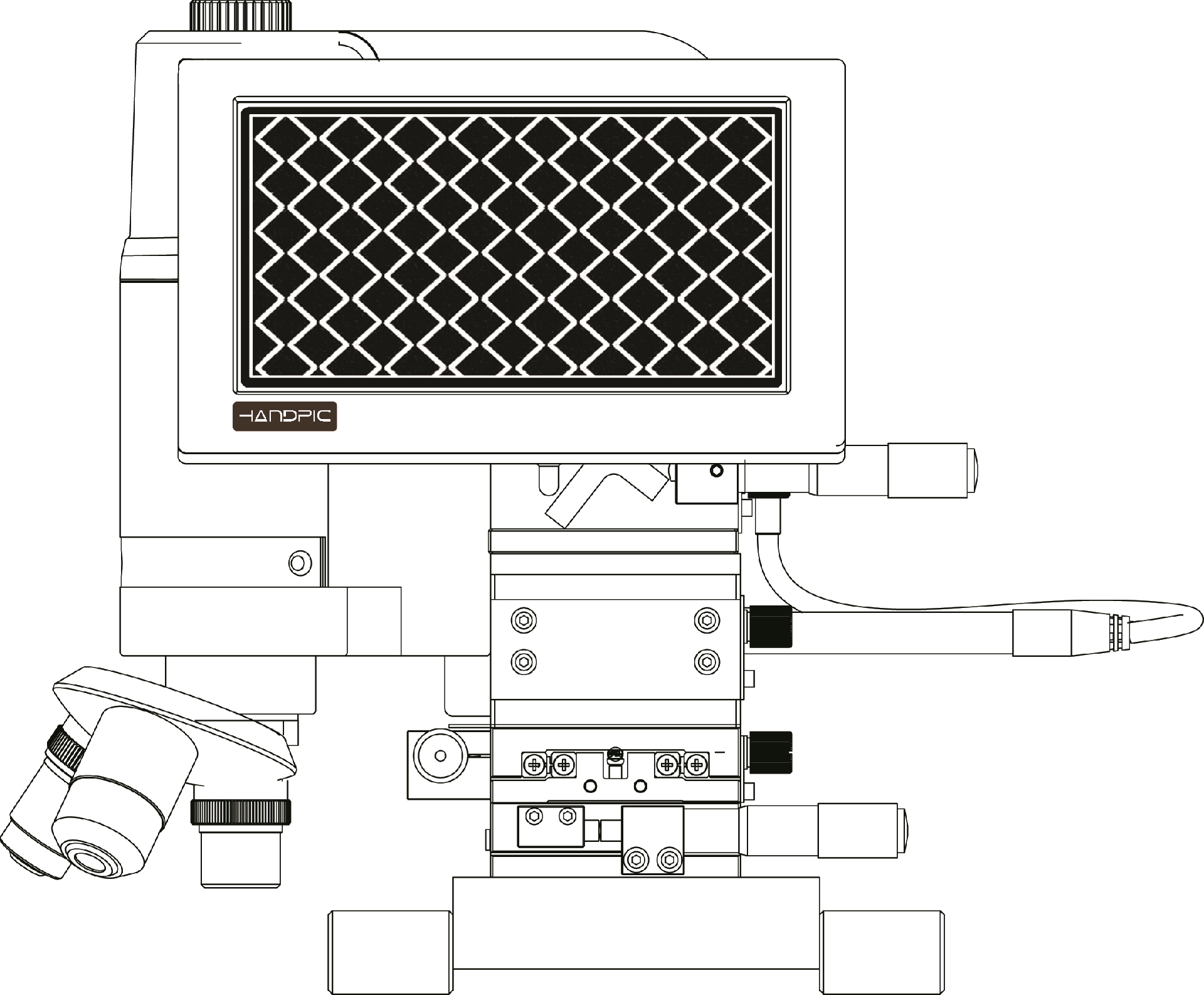

instrumentStructure:

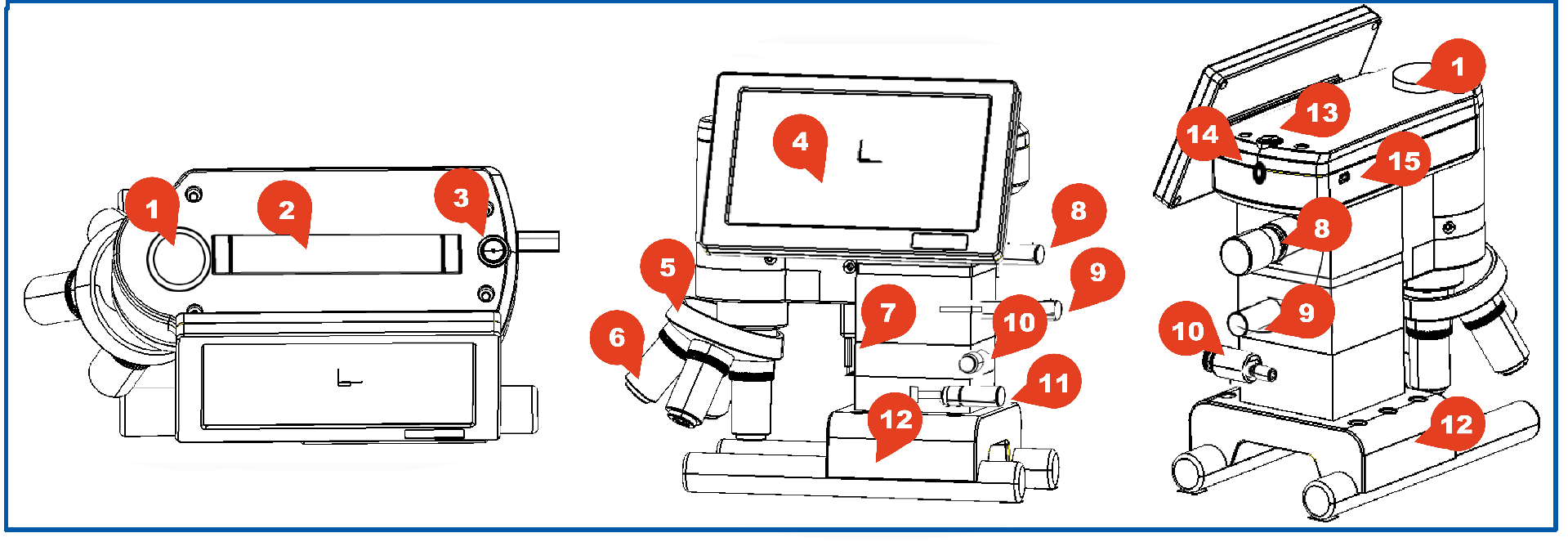

1: Image Angle adjustment knob | 2: Instrument handle | 3: Instrument power switch | 4: HD touch screen | 5: Lens rotator |

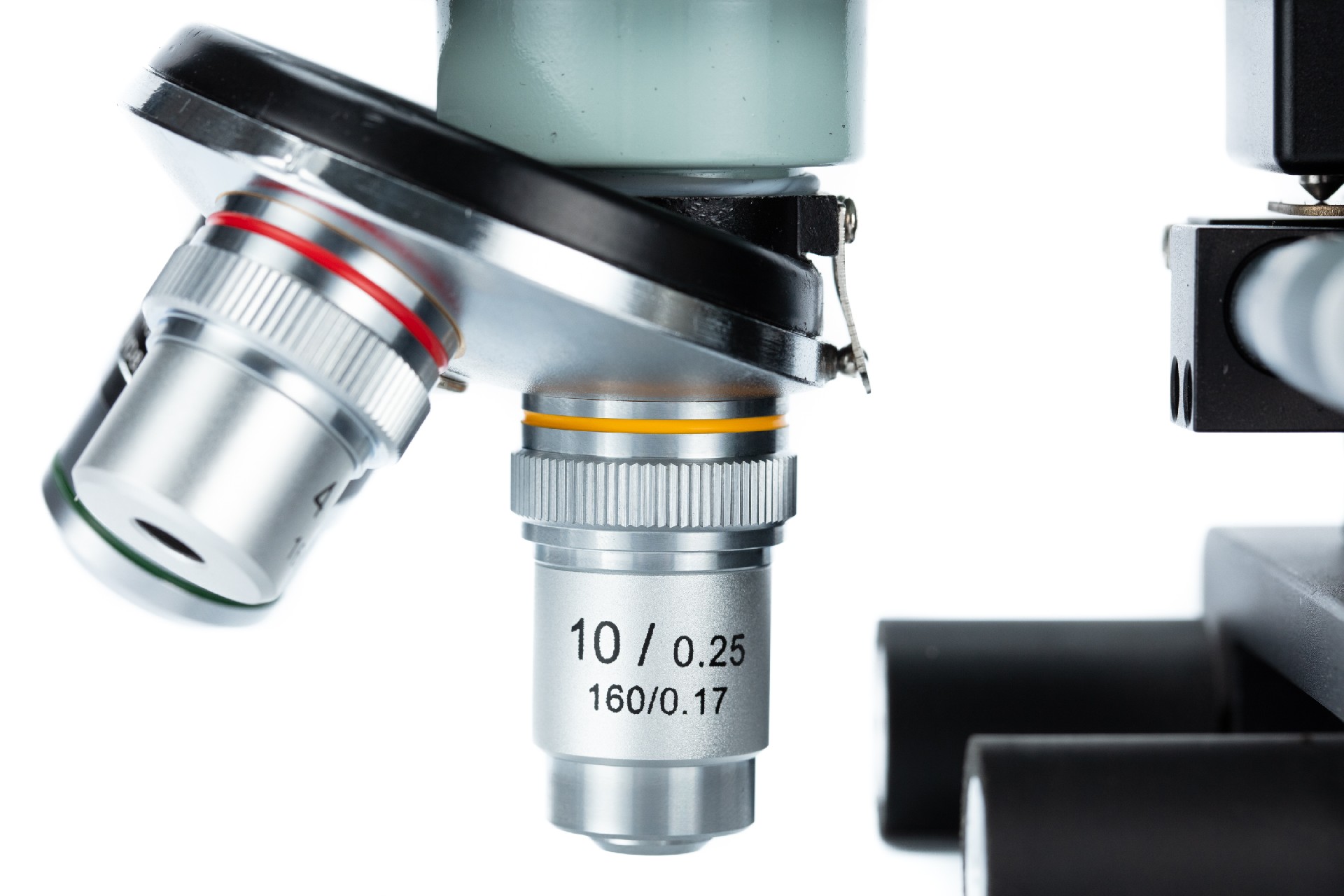

6:4X10X20X lens | 7: Depth sensor | 8: Manual focus knob | 9: Electric focus knob | 10: Move in the Y direction |
11: Move knob in X direction | 12: roller bracket | 13: Instrument upper panel | 14: charging port | 15:USB port |
Technical indicators:
Light transmission chip: | CMOS 1.3 million pixels in black and white | Lighting source: | Coaxial light |
Operating system: | Android5.0 | Display screen: | 6-inch, 720P LCD touch screen |
mirror 头： | 4X lens 10X lens 20X lens | Battery capacity: | DC 5V 、5000mAh |
Data interface: | Micro USB v2.0 、WIFI | Body memory | 2GB ROM |
Storage space: | 8GB | Electricity consumption: | Continuous shooting3 hours |
Instrument size: | 300X123X220mm(Length, width and height) | Instrument weight: | Main engine weight approx.1200 grams |
Depth range: | 4MM | Measurement accuracy: | XY :+/- 0.5μm Z:+/- 1μm |
Drum support: | Spherical structure | Diameter of plate roller can be measured | 100MM-500MM |
Mobile platform: | XYZ Maximum moving range 20MM | Mode of operation: | Mouse, infrared remote control |
Operating temperature: | Five degrees. -35 degrees | Storage temperature: | -20 degrees. -50 degrees |
Image format: | BMP | Image size: | 1280X720 pixels |

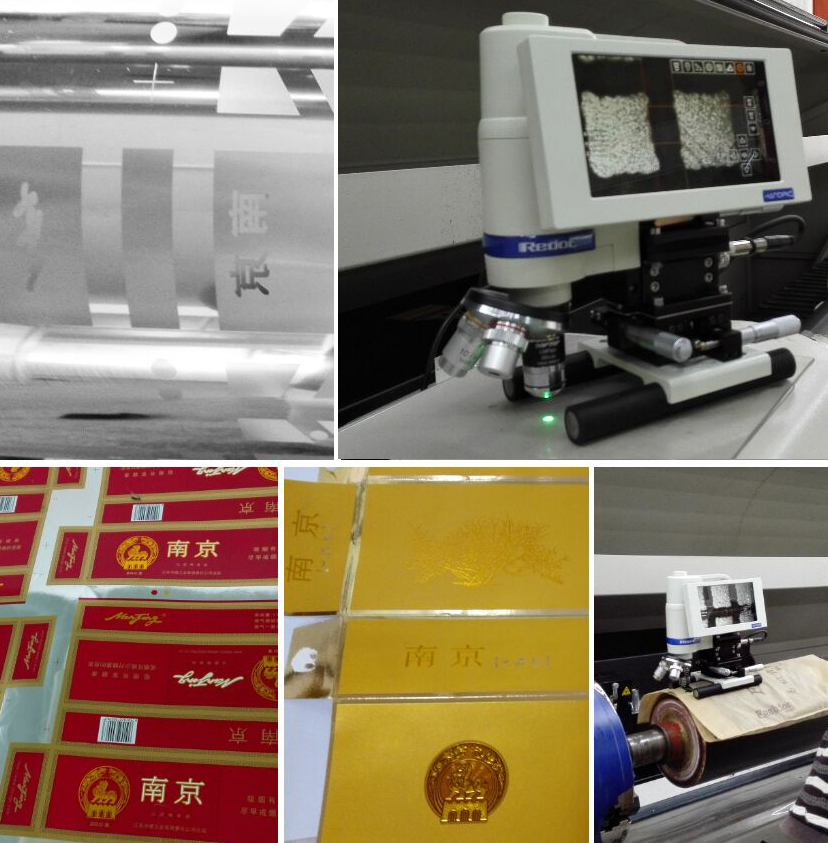

Other industry applications of the instrument:

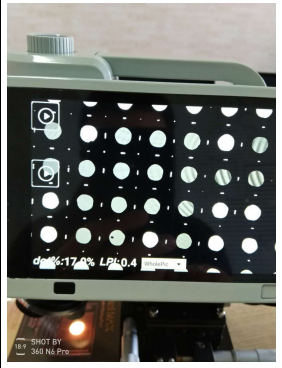

Flexographic plate dot measurement
| |
|
|
| School teaching |
| Non-woven fiber size measurement |
Light transmission chip: | CMOS 1.3 million pixels in black and white | Lighting source: | Coaxial light |
Operating system: | Android5.0 | Display screen: | 6-inch, 720P LCD touch screen |
mirror 头： | 4X lens 10X lens 20X lens | Battery capacity: | DC 5V 、5000mAh |
Data interface: | Micro USB v2.0 、WIFI | Body memory | 2GB ROM |
Storage space: | 8GB | Electricity consumption: | Continuous shooting3小时 |
Instrument size: | 300X123X220mm(长宽高） | Instrument weight: | Main engine weight approx.1200 grams |
1200 grams | 4MM | Measurement accuracy: | XY :+/- 0.5μm Z:+/- 1μm |
Drum support: | Spherical structure | Diameter of plate roller can be measured | 100MM-500MM |
Mobile platform: | XYZ Maximum moving range 20MM | Mode of operation: | Mouse, infrared remote control |
Operating temperature: | Five degrees. -35 degrees | Storage temperature: | -20 degrees. -50 degrees |
Image format: | BMP | Image size: | 1280X720像素 |
感光芯片 | CMOS 130万像素黑白 |
操作系统 | 安卓5.0 |
镜 头 | 4X镜头 10X镜头 20X镜头 |
数据接口 | Micro USB v2.0 、WIFI |
存储空间 | 8GB |
仪器尺寸 | 300X123X220mm(长宽高） |
深度量程 | 4MM |
滚筒支架 | 球形结构 |
移动平台 | XYZ最大移动范围20MM |
操作温度 | 5度-35度 |
图像格式 | BMP |
照明光源 | 同轴光 |
显示屏幕 | 6寸、720P液晶触摸屏幕 |
电池容量 | DC 5V 、5000mAh |
机身内存 | 2GB ROM |
电力消耗 | 连续拍摄工作3小时 |
仪器重量 | 主机重量约1200克 |
测量精度 | XY :+/- 0.5μm Z:+/- 1μm |
可测量版辊直径 | 100MM-500MM |
操作方式 | 鼠标、红外遥控 |
储存温度 | -20度-50度 |
图像尺寸 | 1280X720像素 |
CMOS 130万像素黑白 | 照明光源 | 同轴光 | |
操作系统 | 安卓5.0 | 显示屏幕 | 6寸、720P液晶触摸屏幕 |
镜 头 | 4X镜头 10X镜头 20X镜头 | 电池容量 | DC 5V 、5000mAh |
数据接口 | Micro USB v2.0 、WIFI | 机身内存 | 2GB ROM |
存储空间 | 8GB | 电力消耗 | 连续拍摄工作3小时 |
仪器尺寸 | 300X123X220mm(长宽高） | 仪器重量 | 主机重量约1200克 |
深度量程 | 4MM | 测量精度 | XY :+/- 0.5μm Z:+/- 1μm |
滚筒支架 | 球形结构 | 可测量版辊直径 | 100MM-500MM |
移动平台 | XYZ最大移动范围20MM | 操作方式 | 鼠标、红外遥控 |
操作温度 | 5度-35度 | 储存温度 | -20度-50度 |
图像格式 | BMP | 图像尺寸 | 1280X720像素 |
| 直线测量功能图标 |
| 角度测量功能图标 |
| 面积测量功能图标 |
| 平行线测量功能图标 |
| 点到线垂直测量功能图标 |
| 三点圆测量功能图标 |
测量功能 | 提供6种常用的测量工具，可精准测量网穴的长度，角度，面积等数据，如直线测量、角度测量、面积测量、平行线测量、点到线垂直测量、三点圆测量。 |
支持自标定功能 | 仪器标配微观刻度尺，APP软件中支持用户自定标功能，当测量数据产生偏差后可自行校准，无需返修。
|
根据不同版辊预先设定不同的拍摄亮度 | 不同的版辊表面颜色相差很多，对光的吸收也不同，如凹印版辊表面电镀，陶瓷网纹辊表面喷涂黑色陶瓷，为了到达很好的观测效果软件支持用户自己预值几种不同的曝光数据。
|
一键式拍摄及WORD测量数据生成 | 自动生成PDF检测报告单，方便数据归档。 |
l 手持式一体化设计，设备体积小巧,方便携带。 l 安卓系统，无需接外接电脑及电源即可进行测量分析。 l 7英寸高清触摸屏，测量操作全部通过简单的触摸完成。 l 高分辨率光学镜头，最高800倍有效光学放大倍率。 | l 准确到微米级的长度、角度、面积等测量功能。 l 一键式储存，存储图片回放功能、可将图片及测量数据图片同时保存。 l 内置可蓄电电池，可以连续工作3小时以上。 l 精细电动聚焦调节。 |
手持式一体化设计，设备体积小巧,方便携带。 |
安卓系统，无需接外接电脑及电源即可进行测量分析。 |
7英寸高清触摸屏，测量操作全部通过简单的触摸完成。 |
高分辨率光学镜头，最高800倍有效光学放大倍率。 |
准确到微米级的长度、角度、面积等测量功能。 |
一键式储存，存储图片回放功能、可将图片及测量数据图片同时保存。 |
内置可蓄电电池，可以连续工作3小时以上。 |
精细电动聚焦调节。 |
